- 2 x 80kg steel machined weight stack
- Upgradable to 130kg stacks
- 2:1 Pulley Ratio
- One hand slider adjustment
- Heavy-duty rated cables
- Sealed bearing machined aluminium pulleys
- Single 32mm Chin-up Bar
- Premium J-Hooks supplied
- Plate Storage
- 4 x Shelving Storage
- Full Commercial Warranty

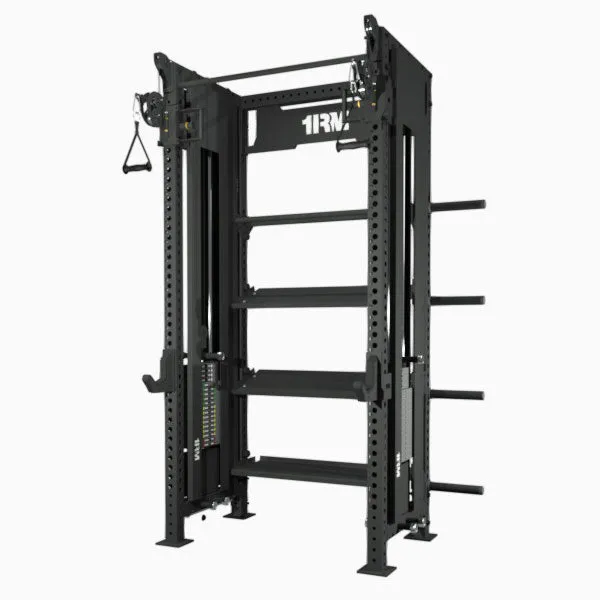

The 1RM Functional Trainer Rack with storage offers limitless training options in the one compact unit. With a built-in squat rack and functional trainer with two 2:1 ratio 80kg or 130kg selectorised weight stacks with 2000lb rated tensile strength cables and sealed bearing machines aluminium pulleys, it also offers plate storage, a medicaine ball shelf, two x dumbbell shelves and a flat shelf - perfect for any environment where strength and quality are demanded.
Features include matte black textured powder coated steel frame, aircraft steel cables, and high quality machined aluminium pulley wheels. The little details also count with easy to adjust anodised aluminium pop pins, a magnetic selector pin with spring cables and band pegs for adding those incremental gains.
With the top four weight plates weighing 2.5kg, and the remaining plates weighing 5kg, it's suitable for all lifters from beginner to experienced.
The included J-Hooks feature a heavy duty steel frame construction with matte-black, textured powder-coat for maximum durability. With High density polyethylene (HDPE) J inserts and black plastic inserts to protect your bar and rig uprights. A simple push and twist design with no locking pins required, they can be added a removed as required.

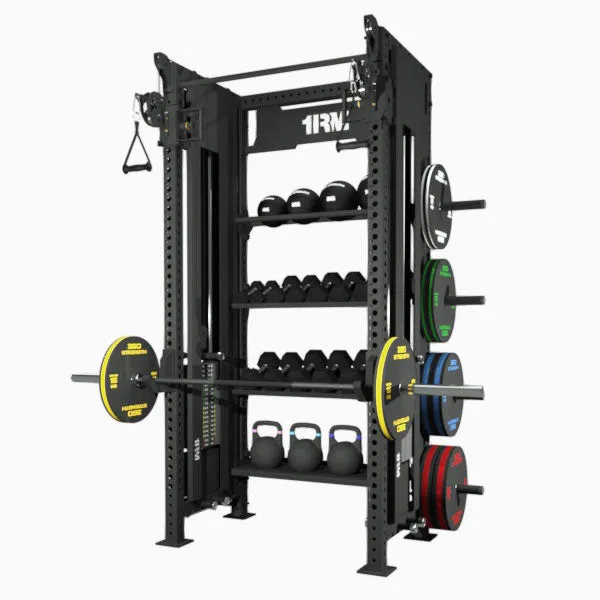

The eight weight plate storage pins at the rear of the unit can be used to store bumper plates or olympic weight plates. The 1m wide shelves offer storage for medicine balls, dumbbells and kettlebells, although these can be changed to suit.
Features
- 2 x 80kg steel machined weight stack
- 2:1 Pulley Ratio
- One hand slider adjustment
- Heavy-duty rated cables
- Sealed bearing machined aluminium pulleys
- Magnetic selector pin with spring cable
- Band Peg attachments
- Single 32mm Chin-up Bar
- Premium J-Hooks supplied
- Eight Plate Storage Pegs
Specifications
- Assembled dimensions: 1818 (W) x 834 (D) x 2510 (H) mm
- Total Weight (80kg stack version): TBC
- Total Weight (130kg stack version): TBC
Customisable
Not quite what you're after? Contact us for a chat and we'll help build the machine you want using the 1RM Modular range.
The 1RM modular range includes power racks, squat racks, rig systems, storage systems, functional cable machines and a lat pulldown machine that are all made to fit together - along with over 20 accessories to suit giving you tens of thousands of possible combinations.
And if we can't build what you want from the 1RM modular range, we'll build you a bespoke solution.
Other Considerations:
Space Required. Please note you need a minimum ceiling clearance of 2.6m for installation. It is recommended around 2.9m to 3m ceiling clearance to have full functionality overhead for barbell work and bar muscle ups.
Installation. This 1RM Ebony Functional Trainer Rack needs to be mounted to the floor. It can be fixed to a floor or structural surface using M12 or M16 size dynabolts / concrete screws (not supplied). Each foot requires four screws. The method used to install the uprights is dependent on the floor they are being affixed to and your preferred method. Any M12 or M16 fixing 75mm or longer is suitable for the intended purpose of functional training depending on the thickness of the flooring.
If you cannot bolt the unit down, it is recommended that you purchase a pair of 1RM Stubby Feet to install on the front of the unit.
